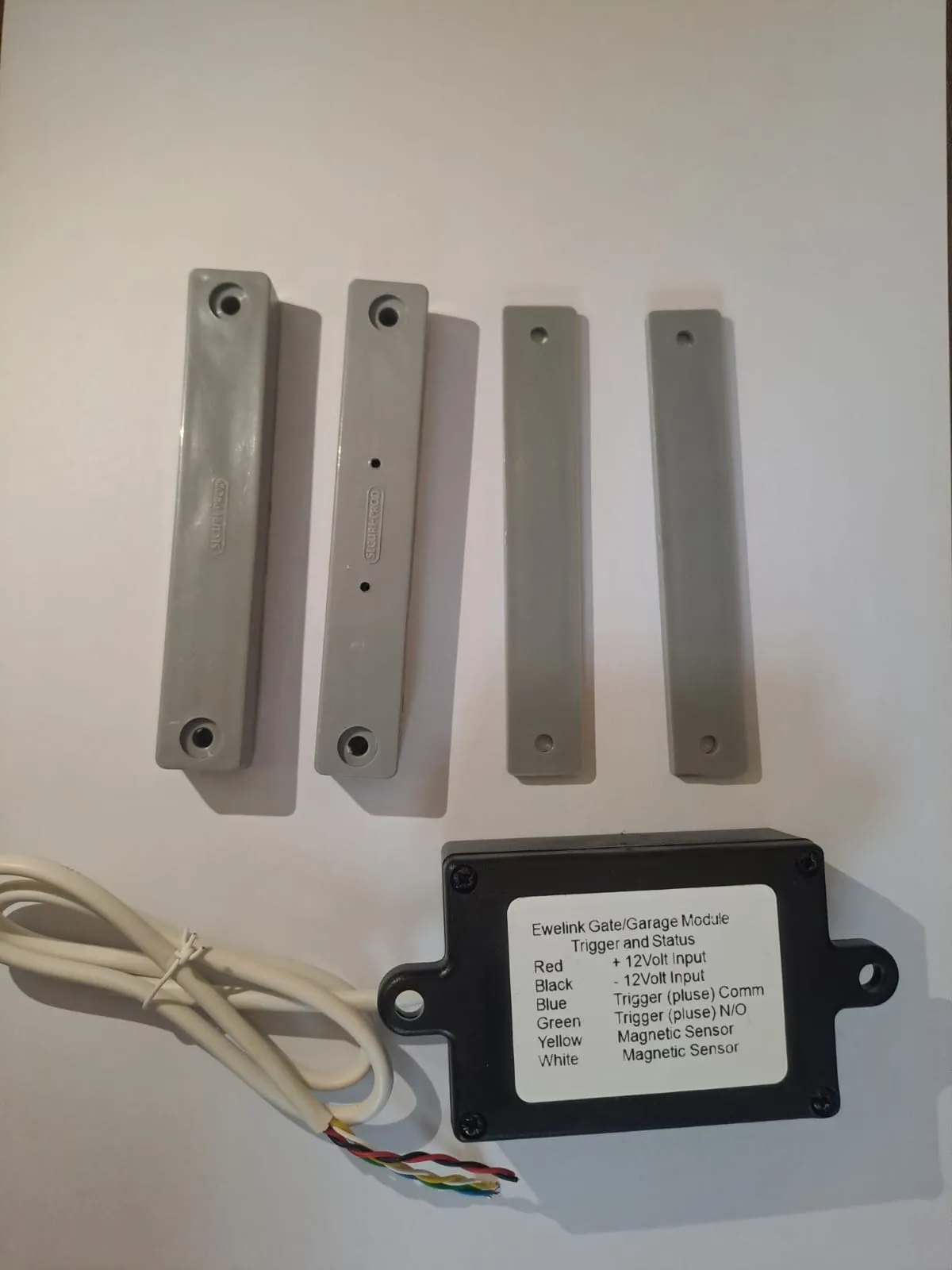

Connects to your battery and gate / garage board.
Know the and change the state of your Garage or Gate of Open or closed.
Installation instructions
FOR USE ON GATE MOTOR
- CONNECT RED WIRE TO 12 POSITIVE ON AUX POWER OF GATE BOARD
- CONNECT BLACK WIRE TO 12 NEGITIVE ON AUX POWER OF GATE BOARD
- CONNECT GREEN AND BLUE WIRES TO THE TRIGGER AND COMMON PORTS ON THE GATE BOARD.
- CONNECT YELLOW AND WHITE WIRES TO THE MAGNETIC CONTACT AND MOUNT TO GATE MOTOR CASE INSTALL MAGNET TO GATE AT A MAX OF 30MM AWAY MAGNTIC CONTACT.
